SonarQube

sonarqube github地址

sonarqube官网

sonarqube dockerhub地址

标准安装

docker安装

官方安装文档

设置系统参数

由于 SonarQube 使用嵌入式 Elasticsearch，请确保您的 Docker 主机配置符合Elasticsearch 生产模式要求 和 文件描述符配置。

需要执行以下命令

sysctl -w vm.max_map_count=524288
sysctl -w fs.file-max=131072
ulimit -n 131072
ulimit -u 8192

如果系统的文件描述符配置不符合要求就会有如下报错

docker logs -f sonarqube_sonarqube_1 报错如下

ERROR: [1] bootstrap checks failed. You must address the points described in the following [1] lines before starting Elasticsearch.
bootstrap check failure [1] of [1]: max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144]
ERROR: Elasticsearch did not exit normally - check the logs at /opt/sonarqube/logs/sonarqube.log

根据提示查看 /opt/sonarqube/logs/sonarqube.log 日志

2021.09.06 08:31:11 INFO  app[][o.s.a.AppFileSystem] Cleaning or creating temp directory /opt/sonarqube/temp
2021.09.06 08:31:11 INFO  app[][o.s.a.es.EsSettings] Elasticsearch listening on [HTTP: 127.0.0.1:9001, TCP: 127.0.0.1:37275]
2021.09.06 08:31:11 INFO  app[][o.s.a.ProcessLauncherImpl] Launch process[[key='es', ipcIndex=1, logFilenamePrefix=es]] from [/opt/sonarqube/elasticsearch]: /opt/sonarqube/elasticsearch/bin/elasticsearch
2021.09.06 08:31:11 INFO  app[][o.s.a.SchedulerImpl] Waiting for Elasticsearch to be up and running
2021.09.06 08:31:16 WARN  app[][o.s.a.p.AbstractManagedProcess] Process exited with exit value [es]: 78
2021.09.06 08:31:16 INFO  app[][o.s.a.SchedulerImpl] Process[es] is stopped
2021.09.06 08:31:16 INFO  app[][o.s.a.SchedulerImpl] SonarQube is stopped

编辑 docker-compose yml文件

官方示例compose文件

export SONARQUBE_VERSION=25.9.0.112764-community
cat > docker-compose.yml <<EOF
services:
  sonarqube:
    image: sonarqube:$SONARQUBE_VERSION
    hostname: sonarqube
    container_name: sonarqube
    read_only: true
    depends_on:
      db:
        condition: service_healthy
    environment:
      SONAR_JDBC_URL: jdbc:postgresql://db:5432/sonar
      SONAR_JDBC_USERNAME: sonar
      SONAR_JDBC_PASSWORD: sonar
    volumes:
      - sonarqube_data:/opt/sonarqube/data
      - sonarqube_extensions:/opt/sonarqube/extensions
      - sonarqube_logs:/opt/sonarqube/logs
      - sonarqube_temp:/opt/sonarqube/temp
    ports:
      - "9000:9000"
    networks:
      - ${NETWORK_TYPE:-ipv4}
  db:
    image: postgres:17
    healthcheck:
      test: [ "CMD-SHELL", "pg_isready -d $${POSTGRES_DB} -U $${POSTGRES_USER}" ]
      interval: 10s
      timeout: 5s
      retries: 5
    hostname: postgresql
    container_name: postgresql
    environment:
      POSTGRES_USER: sonar
      POSTGRES_PASSWORD: sonar
      POSTGRES_DB: sonar
    volumes:
      - postgresql:/var/lib/postgresql
    networks:
      - ${NETWORK_TYPE:-ipv4}

volumes:
  sonarqube_data:
  sonarqube_temp:
  sonarqube_extensions:
  sonarqube_logs:
  postgresql:

networks:
  ipv4:
    driver: bridge
    enable_ipv6: false
  dual:
    driver: bridge
    enable_ipv6: true
    ipam:
      config:
        - subnet: "192.168.2.0/24"
          gateway: "192.168.2.1"
        - subnet: "2001:db8:2::/64"
          gateway: "2001:db8:2::1"
EOF

启动

docker-compose up -d

会启动 sonarqube 和 postgresql 两个容器

$ docker ps
CONTAINER ID   IMAGE                               COMMAND                  CREATED          STATUS                    PORTS                                                                                      NAMES
d126c351ed26   sonarqube:25.9.0.112764-community   "/opt/sonarqube/dock…"   22 seconds ago   Up 11 seconds             0.0.0.0:9000->9000/tcp, [::]:9000->9000/tcp                                                sonarqube
e2d2040ec4a2   postgres:17                         "docker-entrypoint.s…"   22 seconds ago   Up 22 seconds (healthy)   5432/tcp                                                                                   postgresql

访问

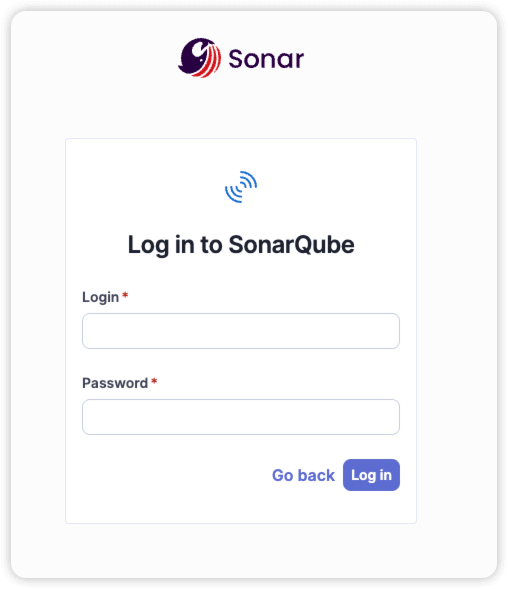

访问 IP:9000

用户名密码均为 admin

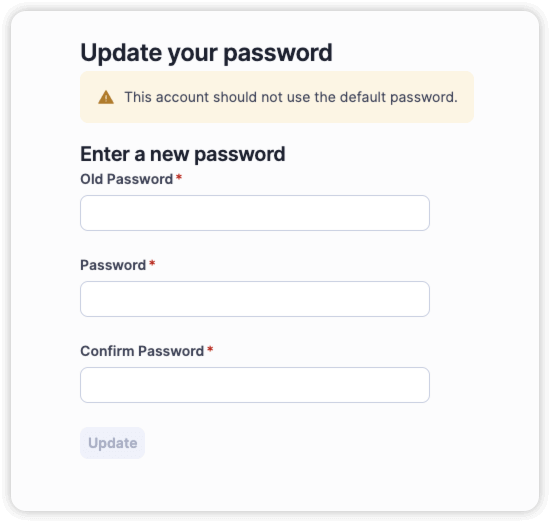

首次登陆需要更新密码

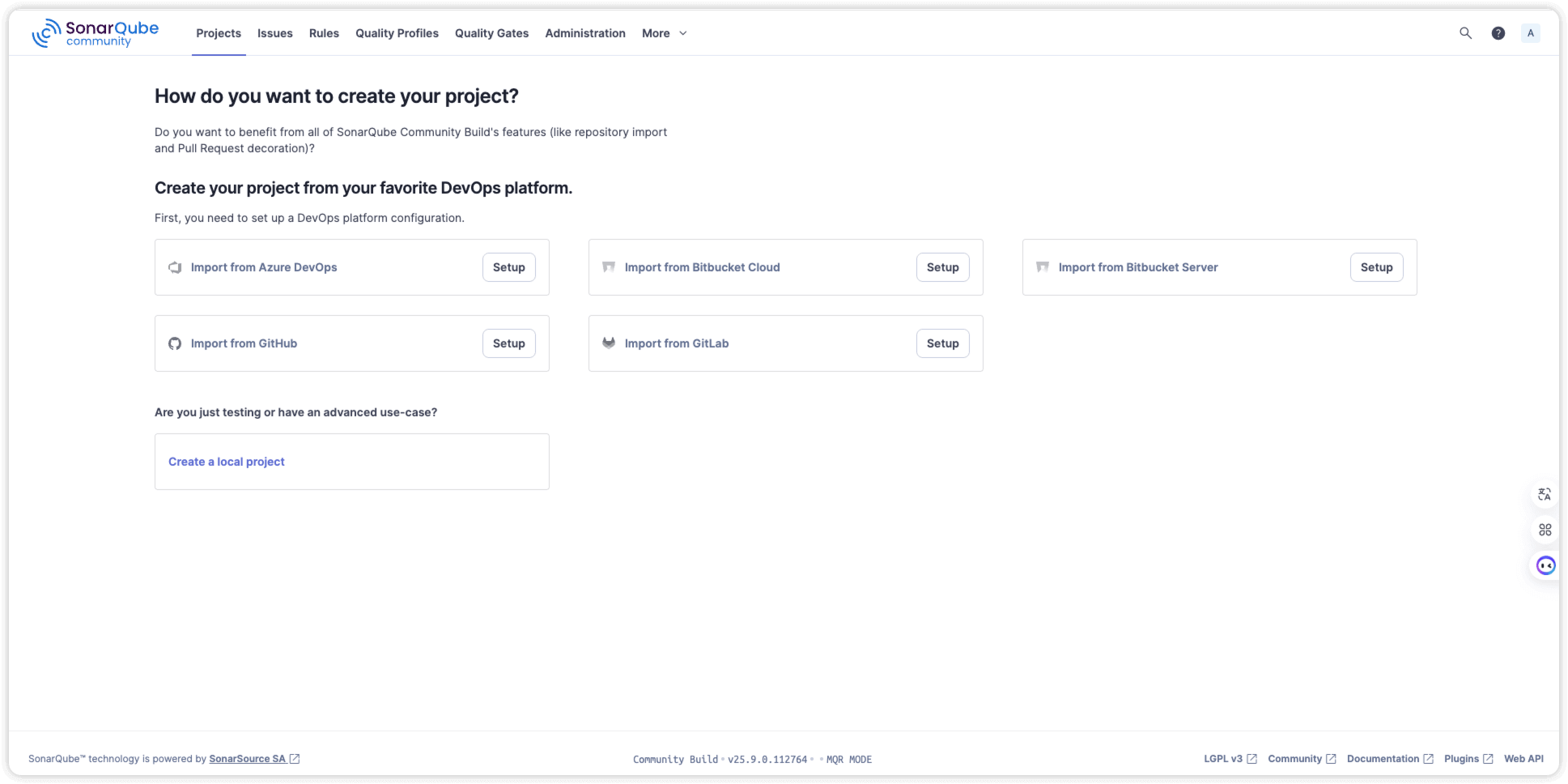

登陆后首页面

SonarQube汉化

SonarQube汉化插件github地址

SonarQube gitlab插件github地址

旧版本汉化

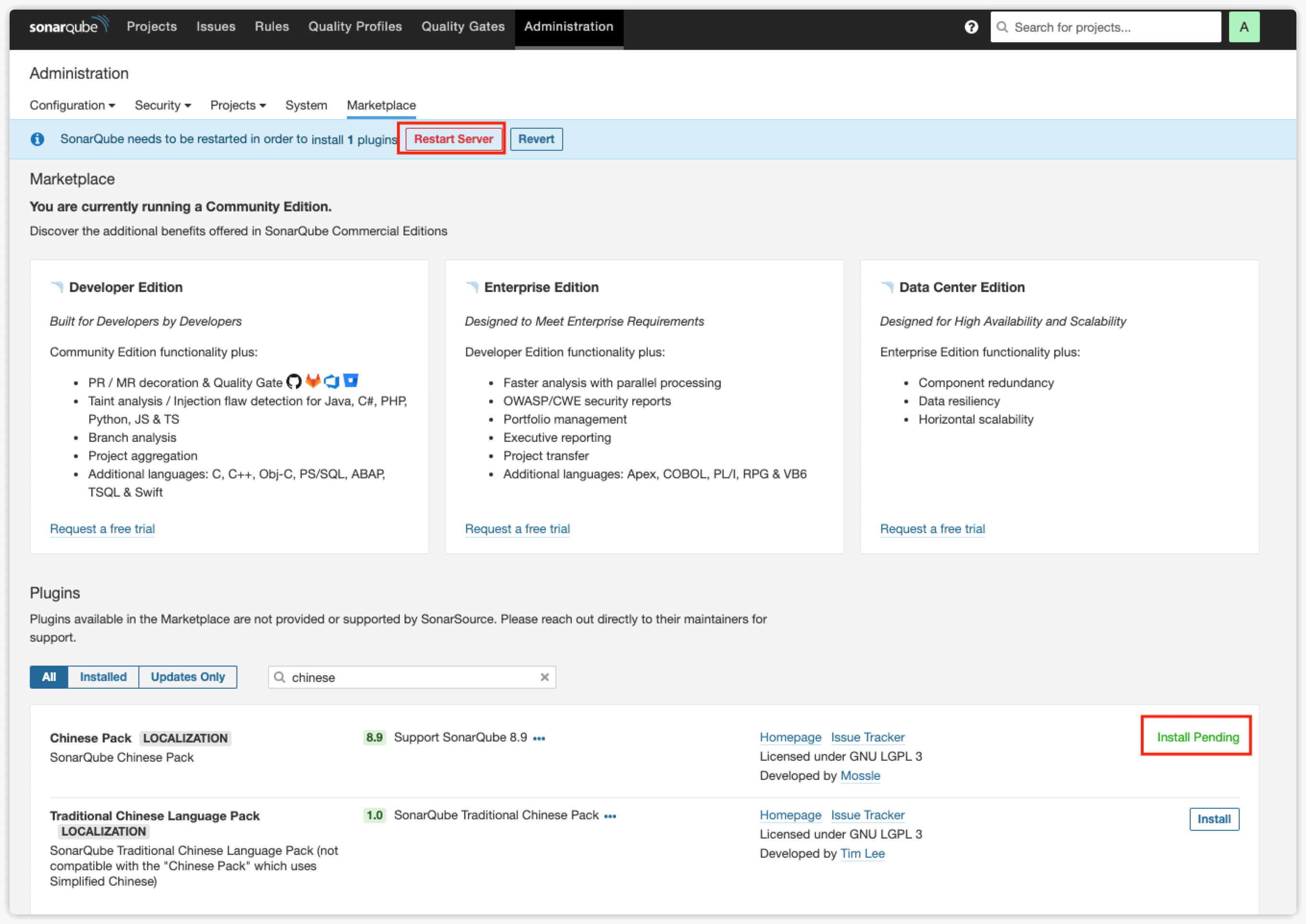

Administration -> Marketplace -> Plugins 下搜索 chinese ，选择 Chinese Pack LOCALIZATION 安装，安装显示 install Pending后重启服务器即可

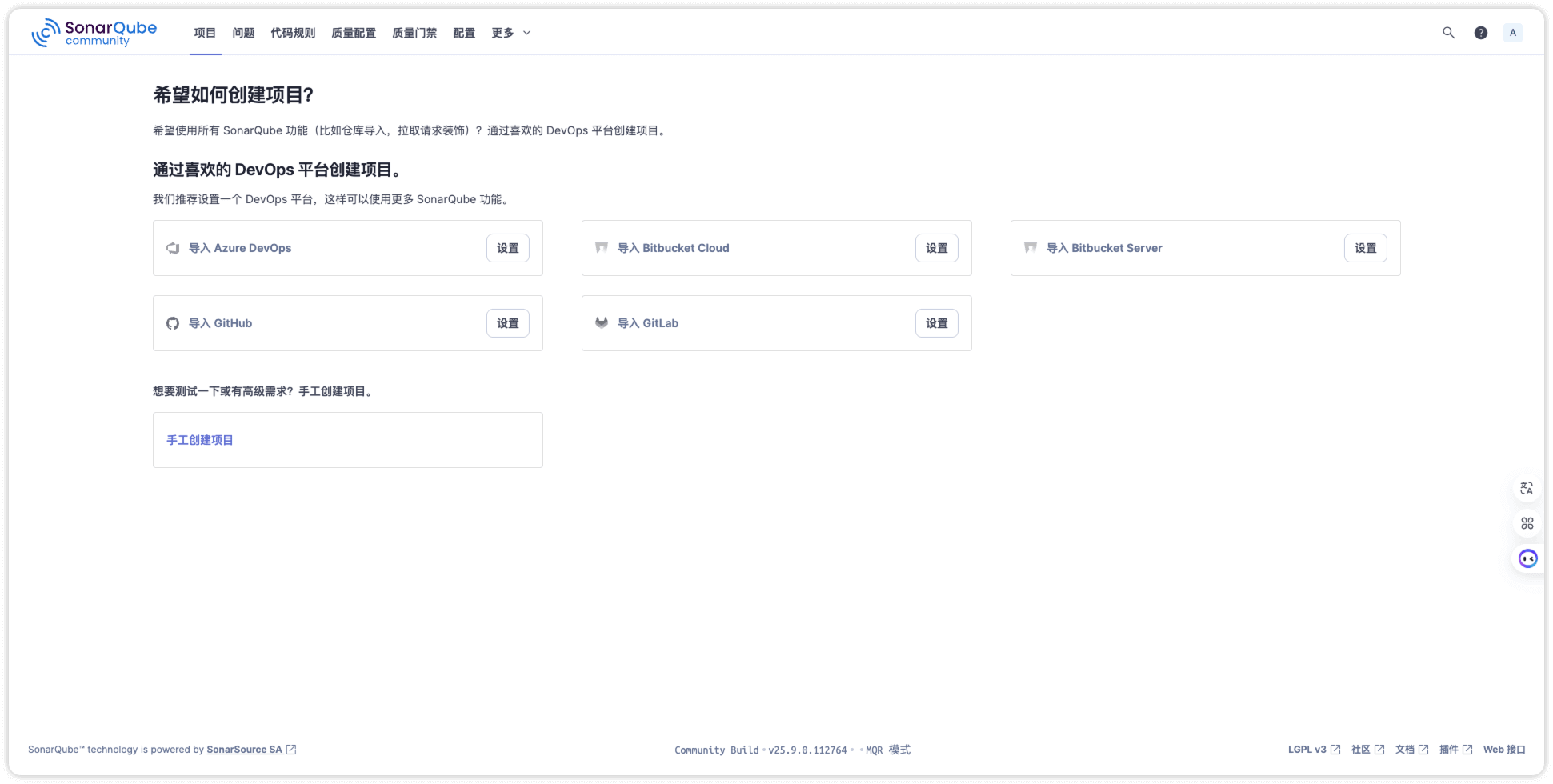

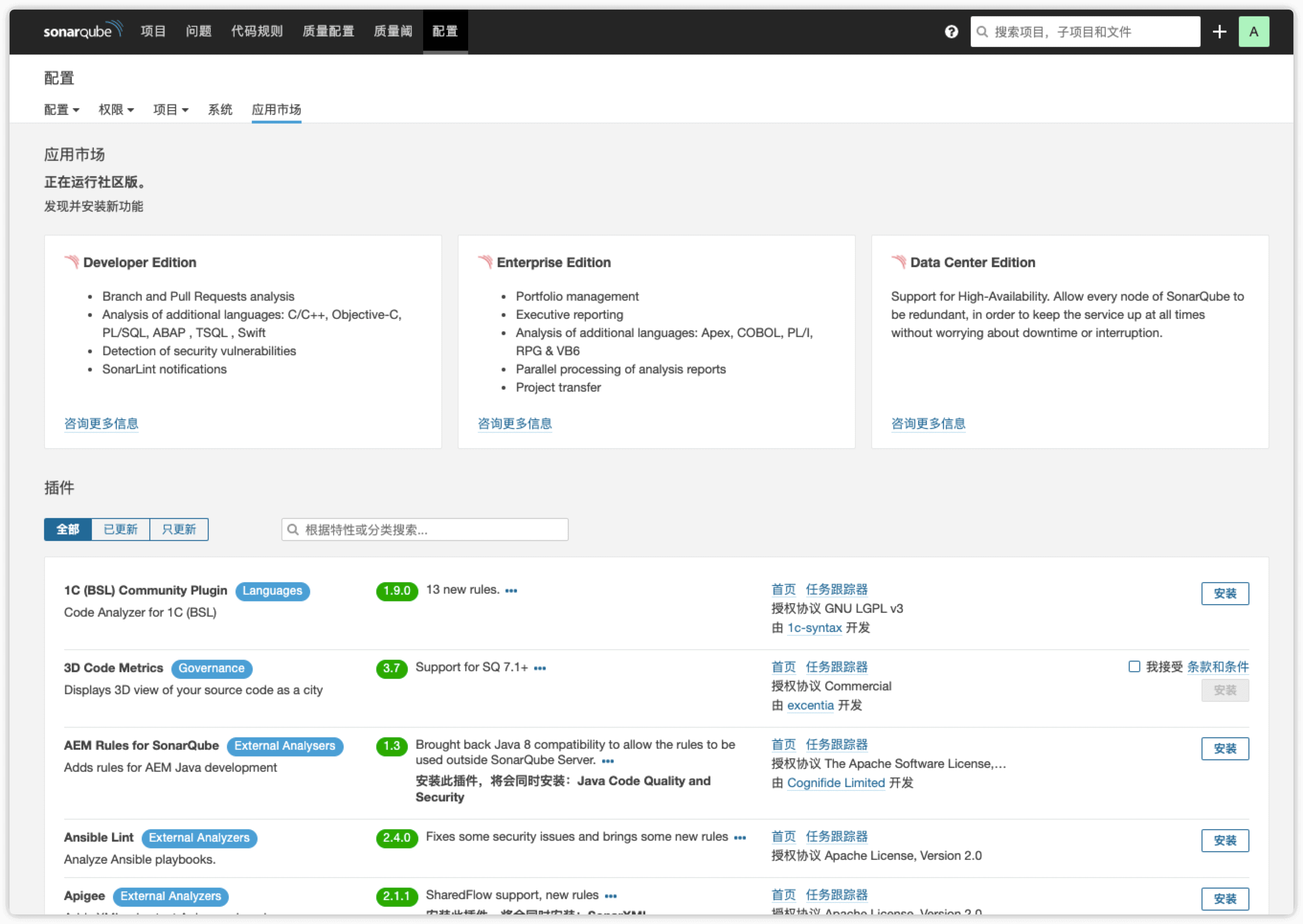

汉化效果

新版本汉化

新版本汉化需要单独下载插件，然后将插件放置于 $SONARQUBE_HOME/extensions/plugins 目录下，然后重启服务即可，以安装的 25.9.0.112764-community 版本为例

export SONARQUBE_PLUGINS_PATH=/var/lib/docker/volumes/sonarqube_sonarqube_extensions/_data/plugins/
cd $SONARQUBE_PLUGINS_PATH
wget https://github.com/xuhuisheng/sonar-l10n-zh/releases/download/sonar-l10n-zh-plugin-25.9/sonar-l10n-zh-plugin-25.9.jar

重启服务即可完成汉化
