openldap备份恢复

openldap使用osixia镜像

备份

使用 osixia/openldap 安装的openldap可以使用 docker-openldap-backup 镜像进行备份

支持的环境变量

变量名	说明
`LDAP_BACKUP_DATA_CRON_EXP`	备份openldap数据
`LDAP_BACKUP_CONFIG_CRON_EXP`	备份openldap配置文件
`LDAP_BACKUP_TTL`	备份保留时间，默认为15天

需要注意的点

注意

使用 docker-openldap-backup 备份容器，需要让备份容器能够访问到openldap的数据目录和配置文件目录，现在openldap容器已经把 数据目录 /var/lib/ldap 和 配置目录 /etc/ldap/slapd.d 挂载到了宿主机

所以启动 osixia/openldap-backup 容器时，只需要把openldap持久化的目录挂载到备份容器中，这样它才能读取到 LDAP 的实际内容，从而进行备份

services:
  openldap:
    image: osixia/openldap:1.5.0
    container_name: openldap
    hostname: openldap
    restart: always
    environment:
      LDAP_ORGANISATION: "ops"
      LDAP_DOMAIN: "ops.com"
      LDAP_ADMIN_PASSWORD: "admin"
    ports:
      - "389:389"
      - "636:636"
    volumes:
      - /data/docker-volume/openldap/data:/var/lib/ldap
      - /data/docker-volume/openldap/config:/etc/ldap/slapd.d

启动备份容器

docker
docker-compose

docker run -d \
  --name openldap-backup \
  --hostname openldap-backup \
  --restart always \
  -v /data/docker-volume/openldap/data:/var/lib/ldap:ro \
  -v /data/docker-volume/openldap/config:/etc/ldap/slapd.d:ro \
  -v /data/docker-volume/openldap/backup:/data/backup \
  -e LDAP_BACKUP_DATA_CRON_EXP="*/1 * * * *" \
  -e LDAP_BACKUP_CONFIG_CRON_EXP="*/1 * * * *" \
  -e LDAP_BACKUP_TTL=7 \
  osixia/openldap-backup:1.5.0

cat > docker-compose.yaml << EOF
services:
  openldap-backup:
    image: osixia/openldap-backup:1.5.0
    container_name: openldap-backup
    hostname: openldap-backup
    restart: always
    environment:
      - LDAP_BACKUP_CONFIG_CRON_EXP=*/1 * * * *
      - LDAP_BACKUP_DATA_CRON_EXP=*/1 * * * *
      - LDAP_BACKUP_TTL=7
    volumes:
      - /data/openldap/backup:/data/backup
      - /data/docker-volume/openldap/data:/var/lib/ldap:ro
      - /data/docker-volume/openldap/config:/etc/ldap/slapd.d:ro
EOF

查看备份文件

会在 /data/openldap/backup 目录下生成以下备份文件

说明

config.gz 对应的是 /etc/ldap/slapd.d 配置文件目录

data.gz 对应的是 /var/lib/ldap 数据目录

iShot_2025-09-15_17.40.11

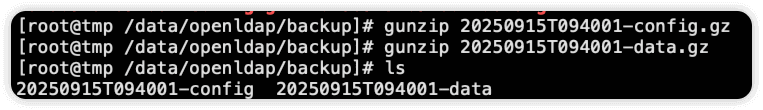

解压缩后

iShot_2025-09-15_17.41.30

20250915T094001-data 文件内容

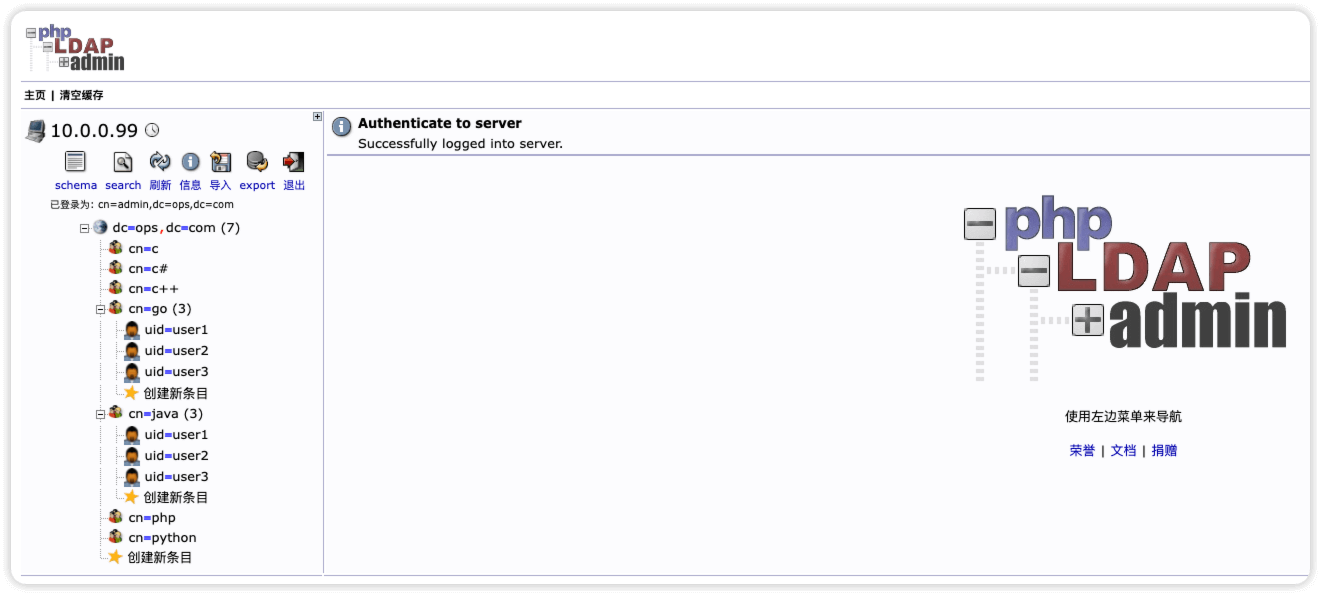

ldap中的组和用户如下，需要注意data文件内容备份是否正确

iShot_2025-09-15_17.44.48

$ cat 20250915T094001-data
dn: dc=ops,dc=com
objectClass: top
objectClass: dcObject
objectClass: organization
o: ops
dc: ops
structuralObjectClass: organization
entryUUID: 34358968-2323-1040-8507-cb1f297b6d9f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.123326Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911062049Z

dn: cn=go,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: go
gidNumber: 1000
structuralObjectClass: posixGroup
entryUUID: 941eaab2-232d-1040-973f-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.001980Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: cn=java,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: java
gidNumber: 1001
structuralObjectClass: posixGroup
entryUUID: 9420bbc2-232d-1040-9740-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.015559Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: cn=python,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: python
gidNumber: 1002
structuralObjectClass: posixGroup
entryUUID: 9422ed66-232d-1040-9741-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.029941Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: cn=php,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: php
gidNumber: 1003
structuralObjectClass: posixGroup
entryUUID: 9424c064-232d-1040-9742-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.041895Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: cn=c,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: c
gidNumber: 1004
structuralObjectClass: posixGroup
entryUUID: 94262ddc-232d-1040-9743-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.051252Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: cn=c\2B\2B,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: c++
gidNumber: 1005
structuralObjectClass: posixGroup
entryUUID: 94280a26-232d-1040-9744-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.063445Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: cn=c#,dc=ops,dc=com
objectClass: top
objectClass: posixGroup
cn: c#
gidNumber: 1006
structuralObjectClass: posixGroup
entryUUID: 94299b66-232d-1040-9745-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073505Z
entryCSN: 20250911073505.073717Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073505Z

dn: uid=user1,cn=go,dc=ops,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
cn: user1
sn: user1
uid: user1
uidNumber: 1001
gidNumber: 1000
homeDirectory: /home/user1
loginShell: /bin/bash
mail: user1@ops.com
userPassword:: e1NTSEF9dVVGWTRFSkljY21ibklaQlBNaXEwNlFLNEhHOXZPL2E=
structuralObjectClass: inetOrgPerson
entryUUID: 24b0d776-232e-1040-9746-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073907Z
entryCSN: 20250911073907.551879Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073907Z

dn: uid=user2,cn=go,dc=ops,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
cn: user2
sn: user2
uid: user2
uidNumber: 1002
gidNumber: 1000
homeDirectory: /home/user2
loginShell: /bin/bash
mail: user2@ops.com
userPassword:: e1NTSEF9dVVGWTRFSkljY21ibklaQlBNaXEwNlFLNEhHOXZPL2E=
structuralObjectClass: inetOrgPerson
entryUUID: 24b2af06-232e-1040-9747-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073907Z
entryCSN: 20250911073907.563973Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073907Z

dn: uid=user3,cn=go,dc=ops,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
cn: user3
sn: user3
uid: user3
uidNumber: 1003
gidNumber: 1000
homeDirectory: /home/user3
loginShell: /bin/bash
mail: user3@ops.com
userPassword:: e1NTSEF9dVVGWTRFSkljY21ibklaQlBNaXEwNlFLNEhHOXZPL2E=
structuralObjectClass: inetOrgPerson
entryUUID: 24b38638-232e-1040-9748-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073907Z
entryCSN: 20250911073907.569482Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073907Z

dn: uid=user1,cn=java,dc=ops,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
cn: user1
sn: user1
uid: user1
uidNumber: 1001
gidNumber: 1000
homeDirectory: /home/user1
loginShell: /bin/bash
mail: user1@ops.com
userPassword:: e1NTSEF9dVVGWTRFSkljY21ibklaQlBNaXEwNlFLNEhHOXZPL2E=
structuralObjectClass: inetOrgPerson
entryUUID: 32e04e62-232e-1040-9749-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073931Z
entryCSN: 20250911073931.351062Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073931Z

dn: uid=user2,cn=java,dc=ops,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
cn: user2
sn: user2
uid: user2
uidNumber: 1002
gidNumber: 1000
homeDirectory: /home/user2
loginShell: /bin/bash
mail: user2@ops.com
userPassword:: e1NTSEF9dVVGWTRFSkljY21ibklaQlBNaXEwNlFLNEhHOXZPL2E=
structuralObjectClass: inetOrgPerson
entryUUID: 32e1fa00-232e-1040-974a-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073931Z
entryCSN: 20250911073931.362013Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073931Z

dn: uid=user3,cn=java,dc=ops,dc=com
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
cn: user3
sn: user3
uid: user3
uidNumber: 1003
gidNumber: 1000
homeDirectory: /home/user3
loginShell: /bin/bash
mail: user3@ops.com
userPassword:: e1NTSEF9dVVGWTRFSkljY21ibklaQlBNaXEwNlFLNEhHOXZPL2E=
structuralObjectClass: inetOrgPerson
entryUUID: 32e301d4-232e-1040-974b-819bc7a17f6f
creatorsName: cn=admin,dc=ops,dc=com
createTimestamp: 20250911073931Z
entryCSN: 20250911073931.368768Z#000000#000#000000
modifiersName: cn=admin,dc=ops,dc=com
modifyTimestamp: 20250911073931Z

20250915T094001-config 内容如下

$ cat 20250915T094001-config
dn: cn=config
objectClass: olcGlobal
cn: config
olcArgsFile: /var/run/slapd/slapd.args
olcLogLevel: none
olcPidFile: /var/run/slapd/slapd.pid
olcToolThreads: 1
structuralObjectClass: olcGlobal
entryUUID: 3432699a-2323-1040-9684-37b17f47910e
creatorsName: cn=config
createTimestamp: 20250911062049Z
olcTLSCipherSuite: SECURE256:+SECURE128:-VERS-TLS-ALL:+VERS-TLS1.2:-RSA:-DHE
 -DSS:-CAMELLIA-128-CBC:-CAMELLIA-256-CBC
olcTLSCACertificateFile: /container/service/slapd/assets/certs/ca.crt
olcTLSCertificateFile: /container/service/slapd/assets/certs/ldap.crt
olcTLSCertificateKeyFile: /container/service/slapd/assets/certs/ldap.key
olcTLSDHParamFile: /container/service/slapd/assets/certs/dhparam.pem
olcTLSVerifyClient: demand
entryCSN: 20250915093915.987567Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250915093915Z

dn: cn=module{0},cn=config
objectClass: olcModuleList
cn: module{0}
olcModulePath: /usr/lib/ldap
olcModuleLoad: {0}back_mdb
olcModuleLoad: {1}memberof
olcModuleLoad: {2}refint
structuralObjectClass: olcModuleList
entryUUID: 3432c66a-2323-1040-968c-37b17f47910e
creatorsName: cn=admin,cn=config
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.263918Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250911062049Z

dn: cn=schema,cn=config
objectClass: olcSchemaConfig
cn: schema
structuralObjectClass: olcSchemaConfig
entryUUID: 343274bc-2323-1040-9687-37b17f47910e
creatorsName: cn=admin,cn=config
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.103141Z#000000#000#000000
modifiersName: cn=admin,cn=config
modifyTimestamp: 20250911062049Z
......
structuralObjectClass: olcSchemaConfig
entryUUID: 34457daa-2323-1040-94db-3d6d2d8f803e
creatorsName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.227888Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250911062049Z

dn: olcDatabase={-1}frontend,cn=config
objectClass: olcDatabaseConfig
objectClass: olcFrontendConfig
olcDatabase: {-1}frontend
olcAccess: {0}to * by dn.exact=gidNumber=0+uidNumber=0,cn=peercred,cn=extern
 al,cn=auth manage by * break
olcAccess: {1}to dn.exact="" by * read
olcAccess: {2}to dn.base="cn=Subschema" by * read
olcSizeLimit: 500
structuralObjectClass: olcDatabaseConfig
entryUUID: 34326e36-2323-1040-9685-37b17f47910e
creatorsName: cn=config
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.102974Z#000000#000#000000
modifiersName: cn=config
modifyTimestamp: 20250911062049Z

dn: olcDatabase={0}config,cn=config
objectClass: olcDatabaseConfig
olcDatabase: {0}config
olcAccess: {0}to * by dn.exact=gidNumber=0+uidNumber=0,cn=peercred,cn=extern
 al,cn=auth manage by * break
olcRootDN: cn=admin,cn=config
structuralObjectClass: olcDatabaseConfig
entryUUID: 3432721e-2323-1040-9686-37b17f47910e
creatorsName: cn=config
createTimestamp: 20250911062049Z
olcRootPW:: e1NTSEF9YVZMdE1xOVJhV29Felg4Sy9NamJmQi81VkpxODgwZnA=
entryCSN: 20250915093915.987730Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250915093915Z

dn: olcDatabase={1}mdb,cn=config
objectClass: olcDatabaseConfig
objectClass: olcMdbConfig
olcDatabase: {1}mdb
olcDbDirectory: /var/lib/ldap
olcSuffix: dc=ops,dc=com
olcLastMod: TRUE
olcRootDN: cn=admin,dc=ops,dc=com
olcDbCheckpoint: 512 30
olcDbMaxSize: 1073741824
structuralObjectClass: olcMdbConfig
entryUUID: 3432d4ca-2323-1040-968d-37b17f47910e
creatorsName: cn=admin,cn=config
createTimestamp: 20250911062049Z
olcAccess: {0}to * by dn.exact=gidNumber=0+uidNumber=0,cn=peercred,cn=extern
 al,cn=auth manage by * break
olcAccess: {1}to attrs=userPassword,shadowLastChange by self write by dn="cn
 =admin,dc=ops,dc=com" write by anonymous auth by * none
olcAccess: {2}to * by self read by dn="cn=admin,dc=ops,dc=com" write by * no
 ne
olcDbIndex: uid eq
olcDbIndex: mail eq
olcDbIndex: memberOf eq
olcDbIndex: entryCSN eq
olcDbIndex: entryUUID eq
olcDbIndex: objectClass eq
olcRootPW:: e1NTSEF9ZXBIQzdhQW0zamcyWk5PbTBTMHc1M2NnZERVYmF1aWs=
entryCSN: 20250915093915.987864Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250915093915Z

dn: olcOverlay={0}memberof,olcDatabase={1}mdb,cn=config
objectClass: olcOverlayConfig
objectClass: olcMemberOf
olcOverlay: {0}memberof
olcMemberOfDangling: ignore
olcMemberOfRefInt: TRUE
olcMemberOfGroupOC: groupOfUniqueNames
olcMemberOfMemberAD: uniqueMember
olcMemberOfMemberOfAD: memberOf
structuralObjectClass: olcMemberOf
entryUUID: 3449cf36-2323-1040-94dc-3d6d2d8f803e
creatorsName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.256189Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250911062049Z

dn: olcOverlay={1}refint,olcDatabase={1}mdb,cn=config
objectClass: olcOverlayConfig
objectClass: olcRefintConfig
olcOverlay: {1}refint
olcRefintAttribute: owner
olcRefintAttribute: manager
olcRefintAttribute: uniqueMember
olcRefintAttribute: member
olcRefintAttribute: memberOf
structuralObjectClass: olcRefintConfig
entryUUID: 344b0fea-2323-1040-94dd-3d6d2d8f803e
creatorsName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
createTimestamp: 20250911062049Z
entryCSN: 20250911062049.264400Z#000000#000#000000
modifiersName: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
modifyTimestamp: 20250911062049Z

恢复

ldap中新建了很多组，其中有用户的组是 go 和 java ，分别有3个user

iShot_2025-09-15_17.44.48

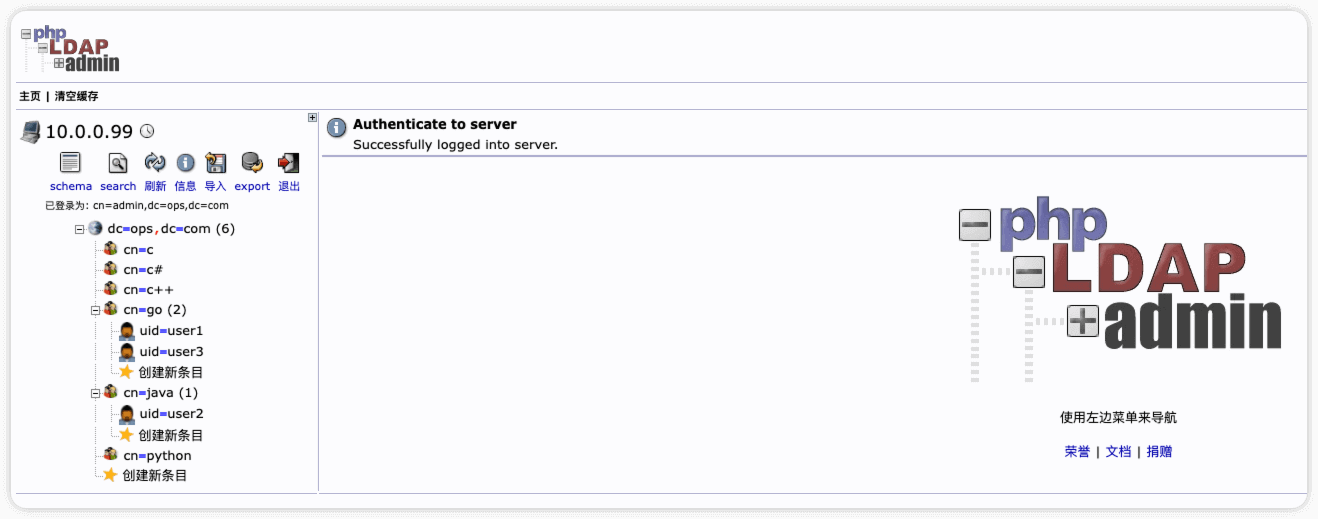

模拟删除

手动删除一些数据，删除了 php 组，go 组和 java 组中的某些用户

iShot_2025-09-17_11.29.53

恢复步骤

第一步停止openldap容器

docker stop openldap

第二步启动一个临时容器

说明

启动临时容器是为了挂载数据和配置，还需要注意原openldap安装时的持久化目录路径要写对

docker run --rm -it \
  -v /data/docker-volume/openldap/data:/var/lib/ldap \
  -v /data/docker-volume/openldap/config:/etc/ldap/slapd.d \
  -v /data/openldap/backup:/backup \
  osixia/openldap:1.5.0 bash

启动的临时容器输出如下

***  INFO   | 2025-09-17 07:51:19 | CONTAINER_LOG_LEVEL = 3 (info)
***  INFO   | 2025-09-17 07:51:19 | Search service in CONTAINER_SERVICE_DIR = /container/service :
***  INFO   | 2025-09-17 07:51:19 | link /container/service/:ssl-tools/startup.sh to /container/run/startup/:ssl-tools
***  INFO   | 2025-09-17 07:51:19 | link /container/service/slapd/startup.sh to /container/run/startup/slapd
***  INFO   | 2025-09-17 07:51:19 | link /container/service/slapd/process.sh to /container/run/process/slapd/run
***  INFO   | 2025-09-17 07:51:19 | Environment files will be proccessed in this order :
Caution: previously defined variables will not be overriden.
/container/environment/99-default/default.startup.yaml
/container/environment/99-default/default.yaml

To see how this files are processed and environment variables values,
run this container with '--loglevel debug'
***  INFO   | 2025-09-17 07:51:19 | Running /container/run/startup/:ssl-tools...
***  INFO   | 2025-09-17 07:51:19 | Running /container/run/startup/slapd...
***  INFO   | 2025-09-17 07:51:19 | openldap user and group adjustments
***  INFO   | 2025-09-17 07:51:19 | get current openldap uid/gid info inside container
***  INFO   | 2025-09-17 07:51:19 | -------------------------------------
***  INFO   | 2025-09-17 07:51:19 | openldap GID/UID
***  INFO   | 2025-09-17 07:51:19 | -------------------------------------
***  INFO   | 2025-09-17 07:51:19 | User uid: 911
***  INFO   | 2025-09-17 07:51:19 | User gid: 911
***  INFO   | 2025-09-17 07:51:19 | uid/gid changed: false
***  INFO   | 2025-09-17 07:51:19 | -------------------------------------
***  INFO   | 2025-09-17 07:51:19 | updating file uid/gid ownership
***  INFO   | 2025-09-17 07:51:19 | No certificate file and certificate key provided, generate:
***  INFO   | 2025-09-17 07:51:19 | /container/service/slapd/assets/certs/ldap.crt and /container/service/slapd/assets/certs/ldap.key
2025/09/17 07:51:19 [INFO] generate received request
2025/09/17 07:51:19 [INFO] received CSR
2025/09/17 07:51:19 [INFO] generating key: ecdsa-384
2025/09/17 07:51:19 [INFO] encoded CSR
2025/09/17 07:51:19 [INFO] signed certificate with serial number 277944086958316277406466799911729315396297533973
***  INFO   | 2025-09-17 07:51:19 | Link /container/service/:ssl-tools/assets/default-ca/default-ca.pem to /container/service/slapd/assets/certs/ca.crt
***  INFO   | 2025-09-17 07:51:19 | Start OpenLDAP...
***  INFO   | 2025-09-17 07:51:19 | Waiting for OpenLDAP to start...
***  INFO   | 2025-09-17 07:51:19 | Add TLS config...
***  INFO   | 2025-09-17 07:51:19 | Disable replication config...
***  INFO   | 2025-09-17 07:51:19 | Stop OpenLDAP...
***  INFO   | 2025-09-17 07:51:19 | Configure ldap client TLS configuration...
***  INFO   | 2025-09-17 07:51:19 | Remove config files...
***  INFO   | 2025-09-17 07:51:19 | First start is done...
***  INFO   | 2025-09-17 07:51:19 | Remove file /container/environment/99-default/default.startup.yaml
***  INFO   | 2025-09-17 07:51:19 | Environment files will be proccessed in this order :
Caution: previously defined variables will not be overriden.
/container/environment/99-default/default.yaml

To see how this files are processed and environment variables values,
run this container with '--loglevel debug'
***  INFO   | 2025-09-17 07:51:19 | Running /container/run/process/slapd/run...
***  INFO   | 2025-09-17 07:51:19 | Running bash...
root@cdb66a1dcd8c:/# 68ca6877 @(#) $OpenLDAP: slapd 2.4.57+dfsg-1~bpo10+1 (Jan 30 2021 06:59:51) $
	Debian OpenLDAP Maintainers <pkg-openldap-devel@lists.alioth.debian.org>
68ca6877 slapd starting

第三步清空数据目录

注意

这里清空的是临时容器中的 /var/lib/ldap/ ，对应的是宿主机目录 /data/docker-volume/openldap/data ，也就是openldap安装时指定的数据持久化目录，这里也就相当于清除原openldap中的数据目录

rm -rf /var/lib/ldap/*

第四步进行数据恢复

注意

命令最后的 -n 数字 这个数字需要先查看openldap数据目录中的主数据库LDIF编号，这里为 olcDatabase={1}mdb.ldif ，-n 后边对应的数字就是1

$ tree /data/docker-volume/openldap/
/data/docker-volume/openldap/
├── config
│   ├── cn=config
│   │   ├── cn=module{0}.ldif
│   │   ├── cn=schema
│   │   │   ├── cn={0}core.ldif
│   │   │   ├── cn={1}cosine.ldif
│   │   │   ├── cn={2}nis.ldif
│   │   │   ├── cn={3}inetorgperson.ldif
│   │   │   ├── cn={4}ppolicy.ldif
│   │   │   ├── cn={5}kopano.ldif
│   │   │   ├── cn={6}openssh-lpk.ldif
│   │   │   ├── cn={7}postfix-book.ldif
│   │   │   └── cn={8}samba.ldif
│   │   ├── cn=schema.ldif
│   │   ├── olcDatabase={0}config.ldif # 配置数据库
│   │   ├── olcDatabase={-1}frontend.ldif # 前端数据库
│   │   ├── olcDatabase={1}mdb # 主数据数据库目录
│   │   │   ├── olcOverlay={0}memberof.ldif
│   │   │   └── olcOverlay={1}refint.ldif
│   │   └── olcDatabase={1}mdb.ldif # 主数据库 LDIF
│   ├── cn=config.ldif
│   ├── docker-openldap-was-admin-password-set
│   └── docker-openldap-was-started-with-tls
└── data
    ├── data.mdb
    └── lock.mdb

6 directories, 21 files

slapadd -F /etc/ldap/slapd.d -l /backup/20250917T072301-data -n 1

输出

_#################### 100.00% eta   none elapsed            none fast!
Closing DB...

这一步执行成功后就可以退出临时容器了

第五步修改目录文件权限

chown -R openldap:openldap /var/lib/ldap
chown -R openldap:openldap /etc/ldap/slapd.d

第六步退出容器，启动原 openldap 容器

docker start openldap

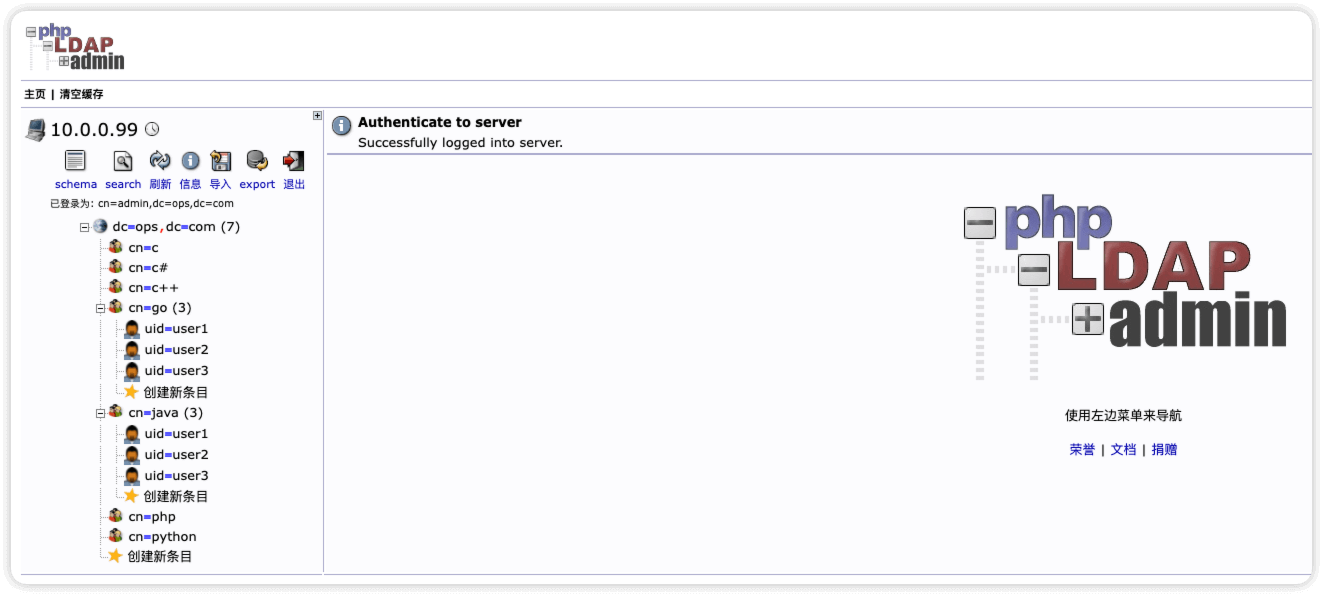

启动容器后再次查看，可以看到数据已经恢复了

iShot_2025-09-17_16.50.06

openldap使用bitnami镜像

使用 bitnami/openldap 安装的openldap无法使用 docker-openldap-backup 镜像进行备份，需要手动执行命令进行备份

备份

说明

在 OpenLDAP 里，数据 (dc=xxx,dc=com) 和 配置 (cn=config，包括 schema、ACL 等) 是分开的两个数据库：

业务数据库 (mdb)：存储你的 dc=xxx,dc=com 下的用户、组等。
配置数据库 (cn=config)：存储全局配置、schema、模块、ACL 等。

备份数据文件

# 进入容器执行备份
slapcat -F /bitnami/openldap/slapd.d -b "dc=ops,dc=com" -l data-backup.ldif

备份配置文件

# 进入容器执行备份
slapcat -n 0 -F /bitnami/openldap/slapd.d > config-backup.ldif

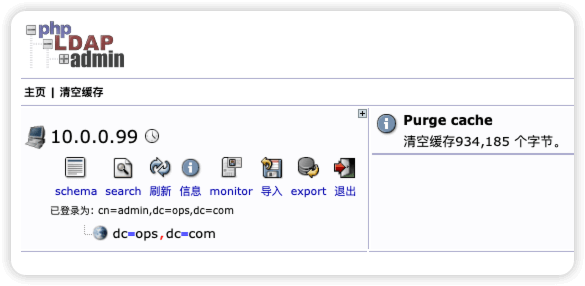

模拟删除

手动删除所有内容

iShot_2025-09-25_10.40.48

恢复

恢复数据文件

注意

直接进行恢复会报错，原因是 slapadd 导入的 backup.ldif 里面有根条目 dc=ops,dc=com，但数据库里已经存在同样的条目，所以报了 Key already exists 错误，因此需要先删除根条目

$ slapadd -F /bitnami/openldap/slapd.d -b "dc=ops,dc=com" -l data-backup.ldif
mdb_id2entry_put: mdb_put failed: MDB_KEYEXIST: Key/data pair already exists(-30799) "dc=ops,dc=com"
=> mdb_tool_entry_put: id2entry_add failed: err=-30799
=> mdb_tool_entry_put: txn_aborted! MDB_KEYEXIST: Key/data pair already exists (-30799)
slapadd: could not add entry dn="dc=ops,dc=com" (line=1): txn_aborted! MDB_KEYEXIST: Key/data pair already exists (-30799)
Closing DB...

删除根条目

删除根条目 dn: dc=ops,dc=com

# 先进行删除
ldapdelete -x -r 'dc=ops,dc=com' -H 'ldap://localhost:1389' -D 'cn=admin,dc=ops,dc=com' -w admin

执行恢复

slapadd -F /bitnami/openldap/slapd.d -b "dc=ops,dc=com" -l backup.ldif

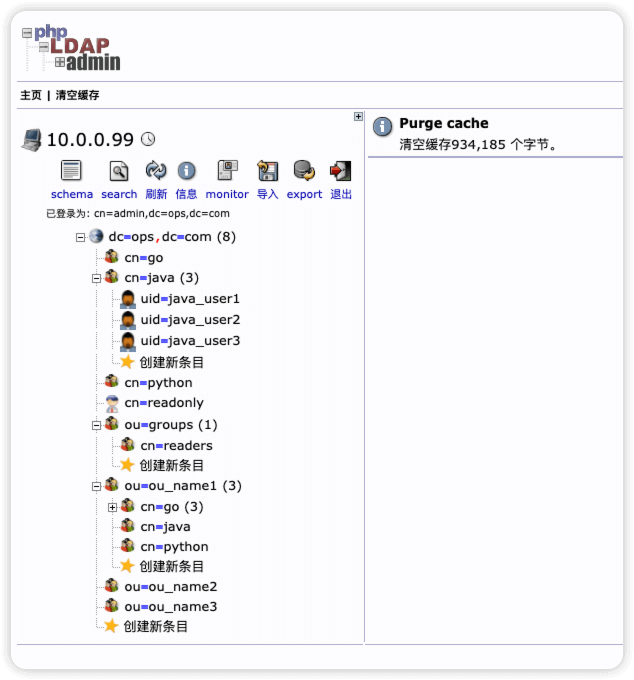

恢复成功后所有内容就都还原了

iShot_2025-09-25_10.46.47

恢复配置文件

注意

直接进行恢复会报错，需要先删除容器中 /bitnami/openldap/slapd.d 目录下的所有内容

$ slapadd -F /bitnami/openldap/slapd.d -n 0 -l config-backup.ldif slapadd: could not add entry dn="cn=config" (line=1): Closing DB...

删除目录下所有内容

# 进入容器删除目录下的所有内容
rm -rf /bitnami/openldap/slapd.d/*

执行恢复

slapadd -F /bitnami/openldap/slapd.d -n 0 -l config-backup.ldif

恢复成功后需要重启容器才能生效

openldap使用osixia镜像​

备份​

支持的环境变量​

需要注意的点​

启动备份容器​

查看备份文件​

恢复​

模拟删除​

恢复步骤​

第一步 停止openldap容器​

第二步 启动一个临时容器​

第三步 清空数据目录​

第四步 进行数据恢复​

第五步 修改目录文件权限​

第六步 退出容器，启动原 openldap 容器​

openldap使用bitnami镜像​

备份​

备份数据文件​

备份配置文件​

模拟删除​

恢复​

恢复数据文件​

删除根条目​

执行恢复​

恢复配置文件​

删除目录下所有内容​

执行恢复​

openldap使用osixia镜像

备份

支持的环境变量

需要注意的点

启动备份容器

查看备份文件

恢复

模拟删除

恢复步骤

第一步停止openldap容器

第二步启动一个临时容器

第三步清空数据目录

第四步进行数据恢复

第五步修改目录文件权限

第六步退出容器，启动原 openldap 容器

openldap使用bitnami镜像

备份

备份数据文件

备份配置文件

模拟删除

恢复

恢复数据文件

删除根条目

执行恢复

恢复配置文件

删除目录下所有内容

执行恢复
